Add external CA to trust list

From i2Rest
Jump to: navigation, search


When using the i2Rest Client to access external https resources, you might meet error "Certificate is not signed by a trusted certificate authority". In this case you will have to add the root CA certificate of the target server to the list of trusted certificates in DCM.

Here is one of ways to get the server's root CA certificate and register it in the DCM trust list.

DCM requires root CA certificate in PEM format. If you already have such file, you have to save it to IBM i directory and can go to step 8.

Using Firefox:

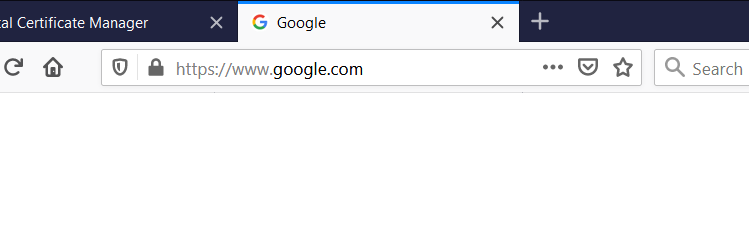

1. Open required page in Firefox:

Add external CA to trust list step1.png

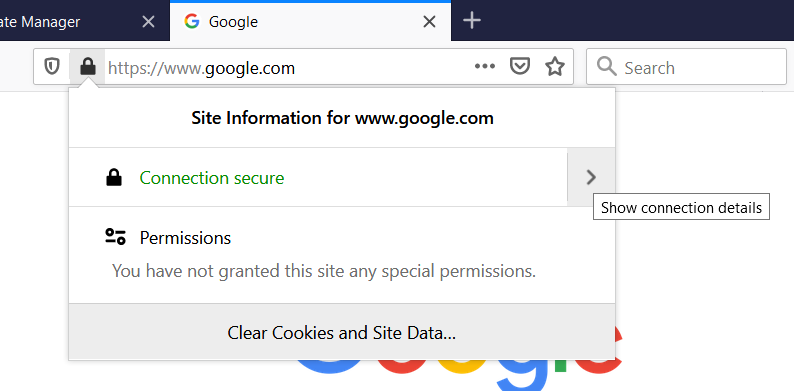

2. Click Lock icon and click Show connection details

Add external CA to trust list step2.png

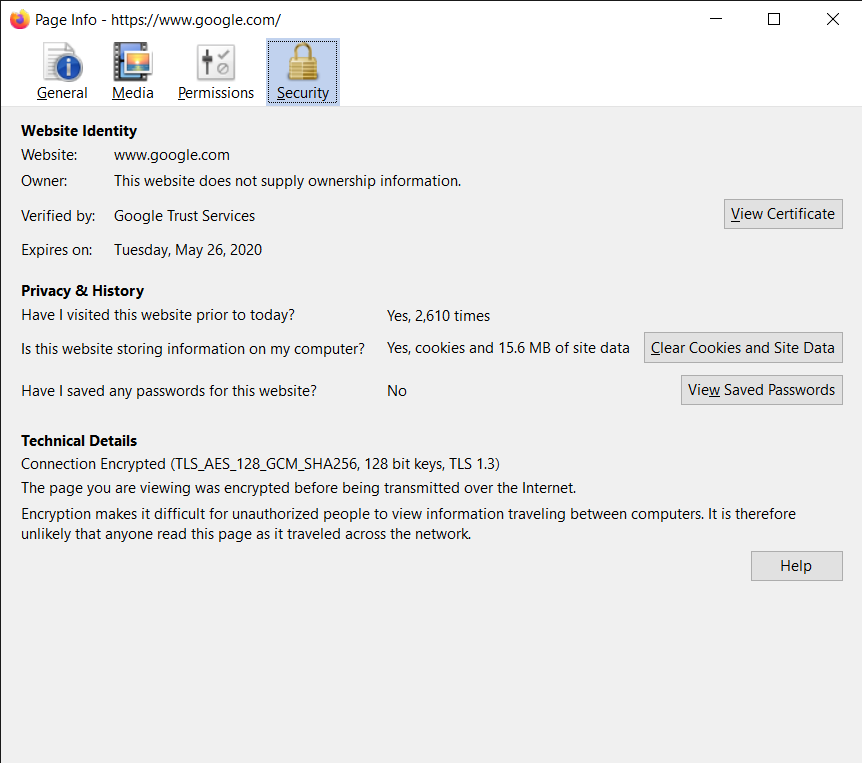

3. Click More information:

Add external CA to trust list step3.png

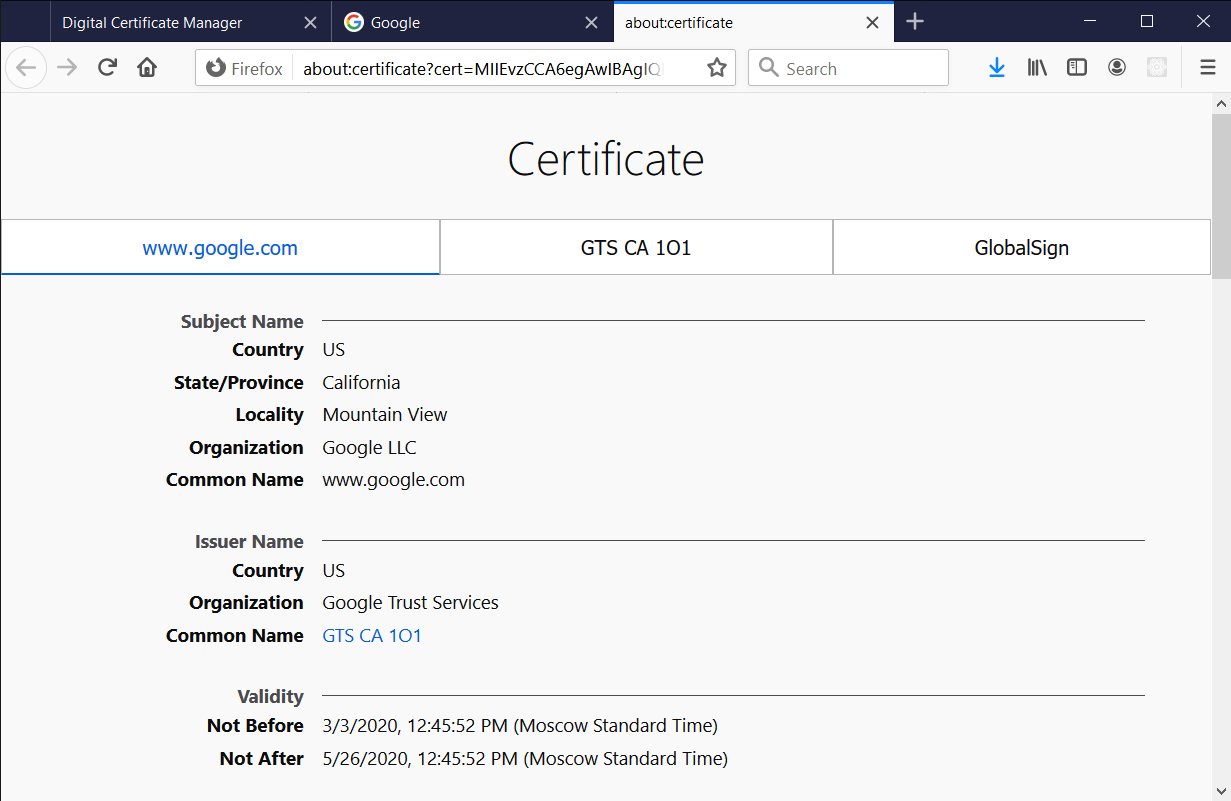

4. View Certificate:

Add external CA to trust list step4.png

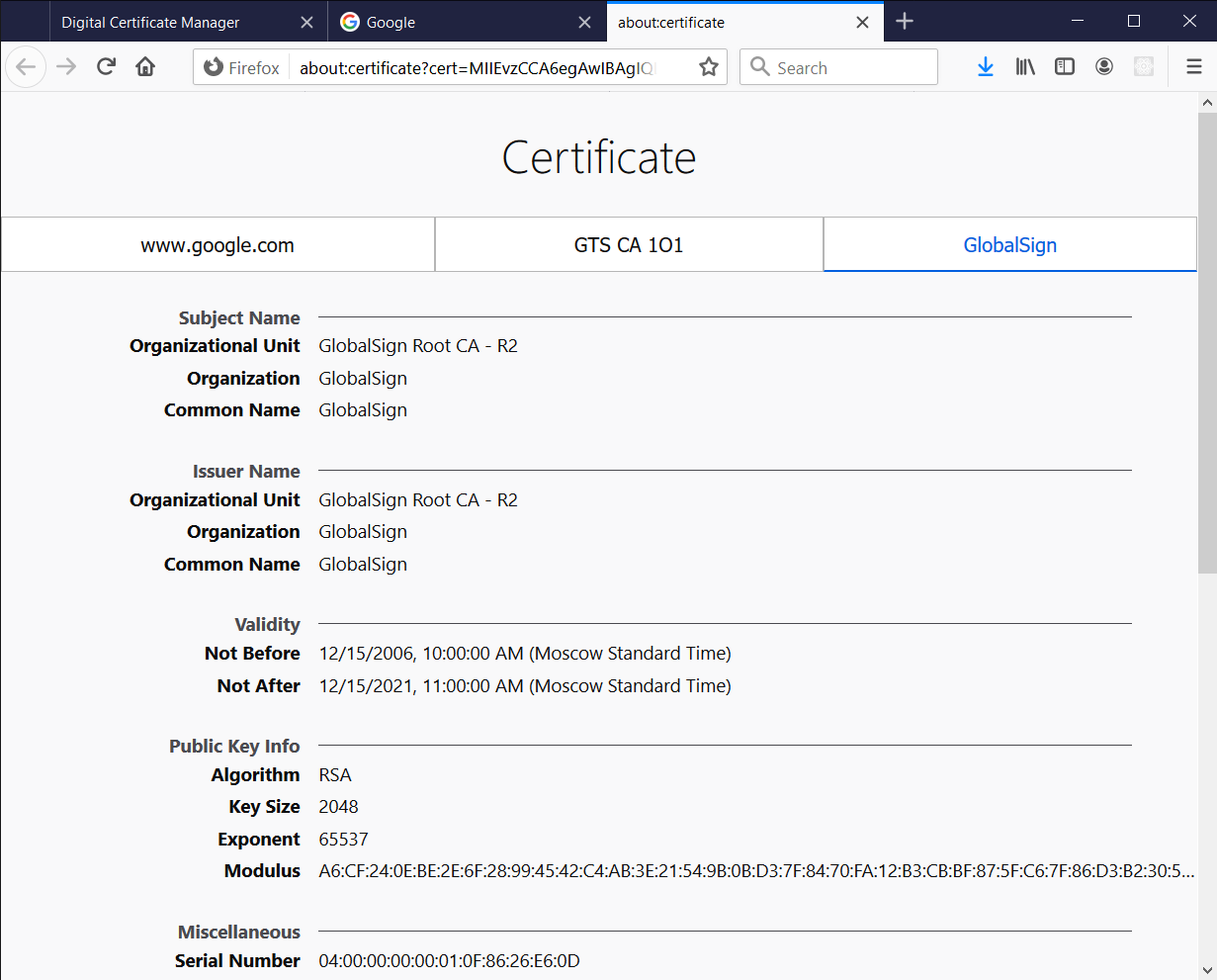

5. Open rightmost tab with root CA authority:

Add external CA to trust list step5.png

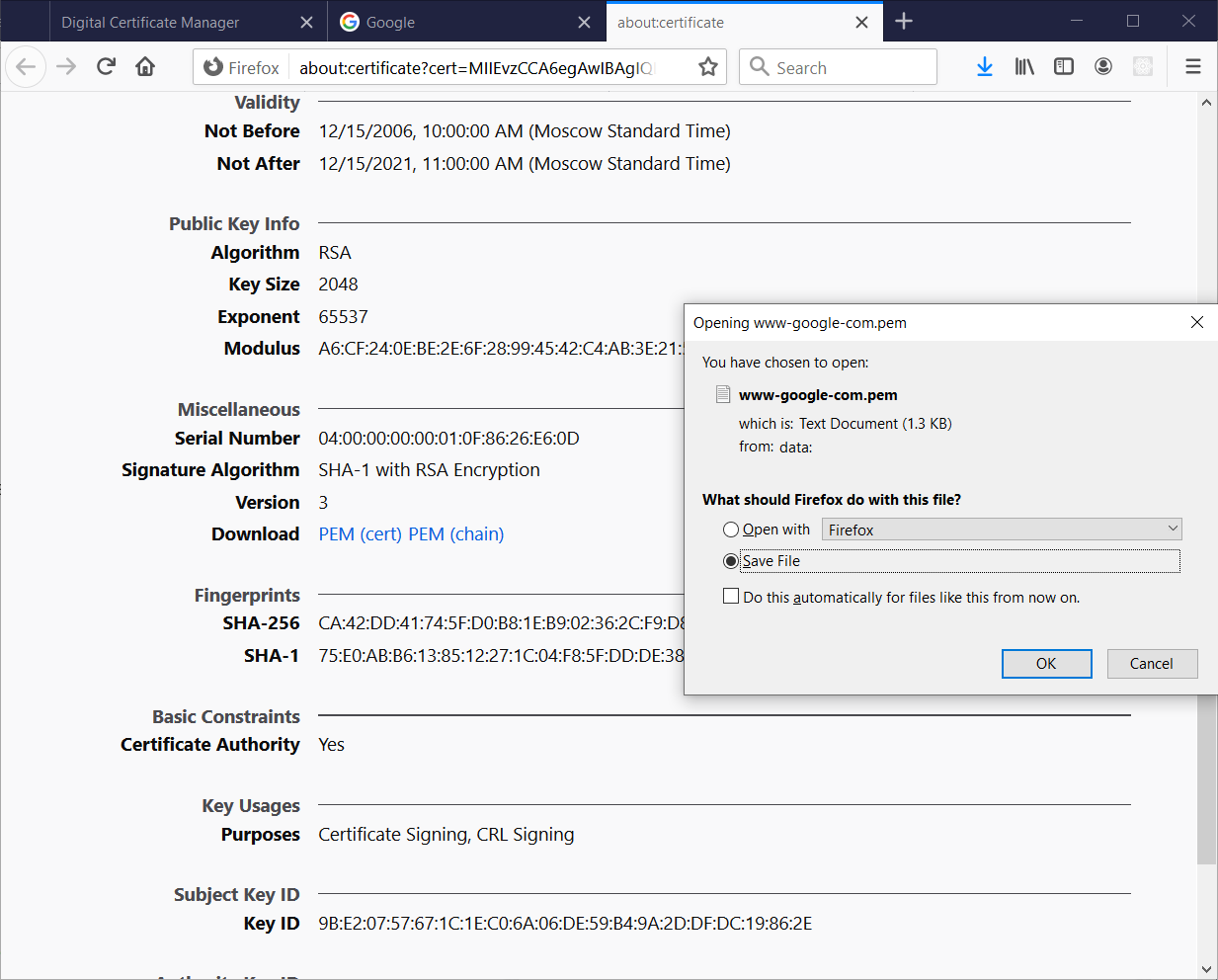

6. Scroll down and click on link Download PEM (Cert), save downloaded file:

Add external CA to trust list step6.png

7. Copy downloaded file to your IBM i folder, for example to /tmp/www-google-com.pem

8. Close opened page and go to DCM *SYSTEM store

9. Go to Manage Certificates and click Import Certificate:

Add external CA to trust list step9.png

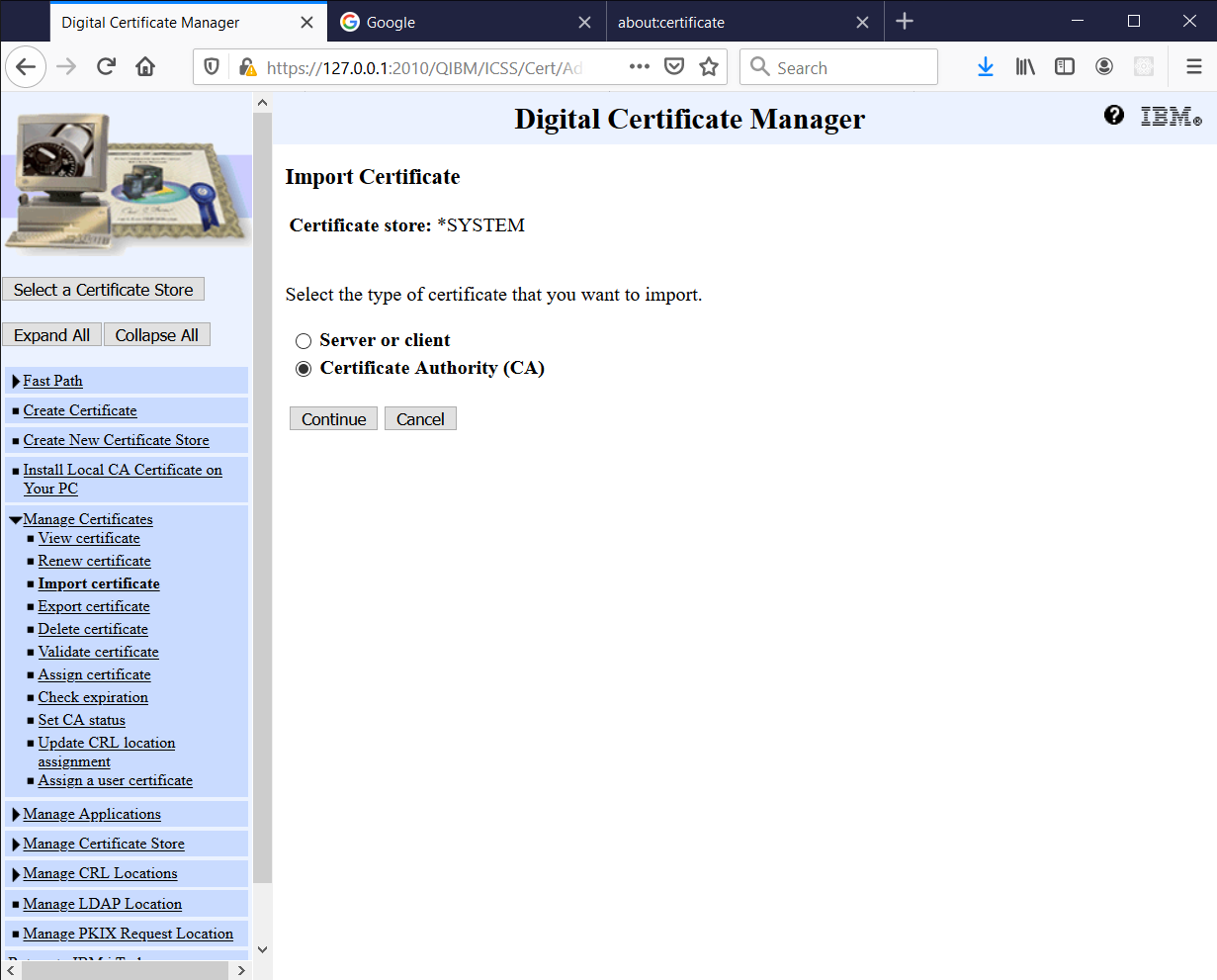

10. Select Certificate Authority (CA) and press Continue:

Add external CA to trust list step10.png

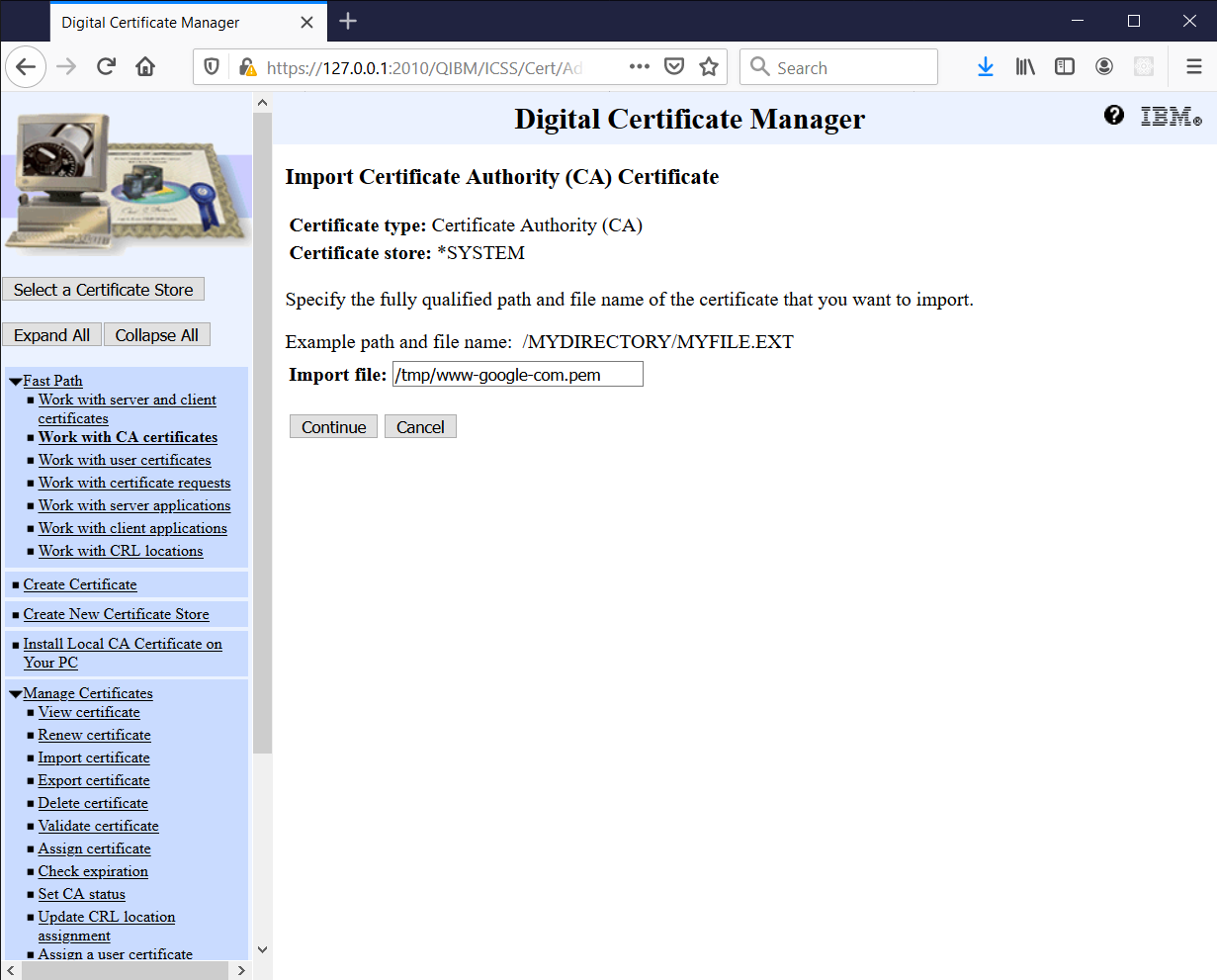

11. Enter path to downloaded chain file (at IBM i) and click Continue:

Add external CA to trust list step11.png

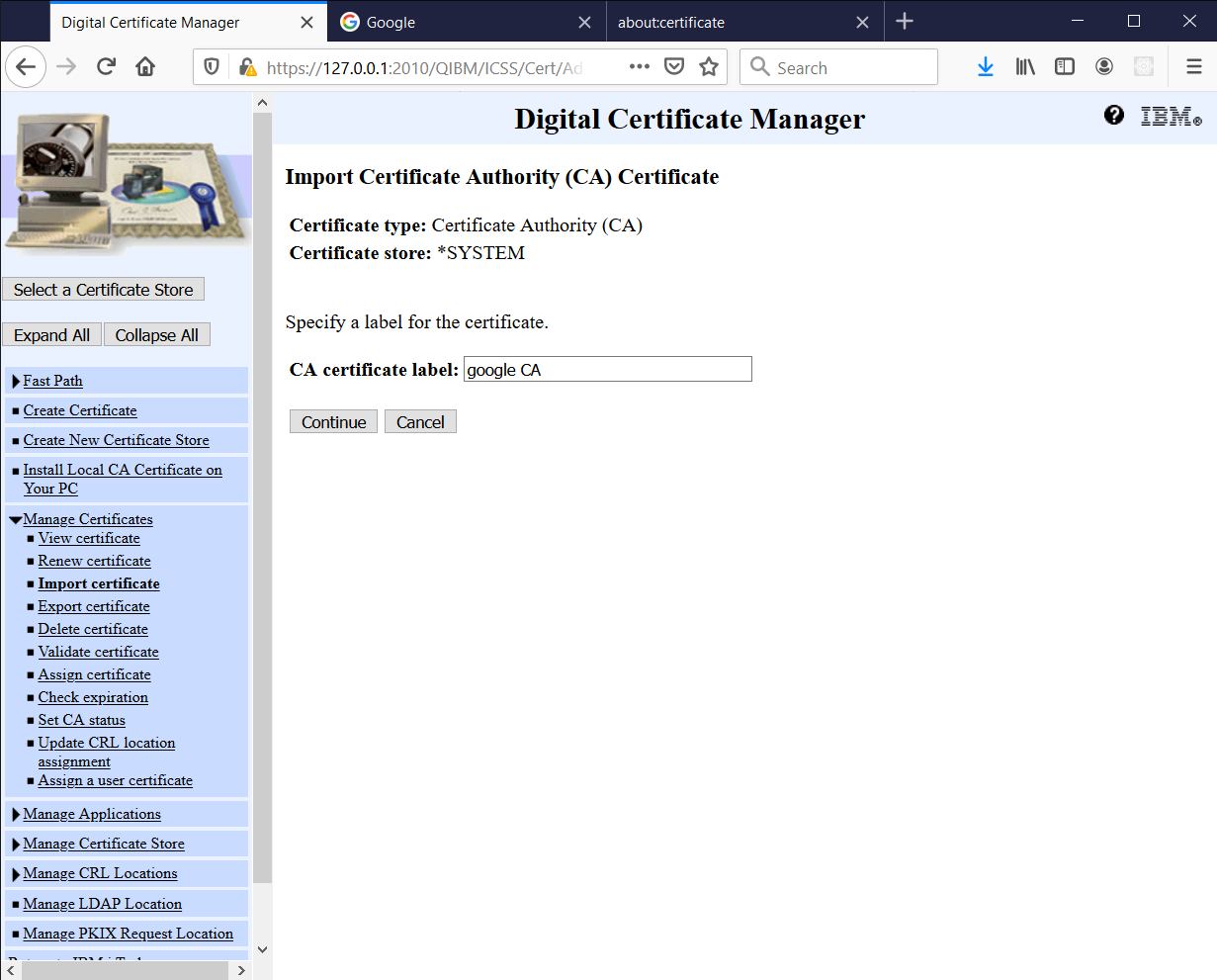

12. Enter certificate label for imported CA (up to you, don't have to be the same as CA common name):

Add external CA to trust list step12.png

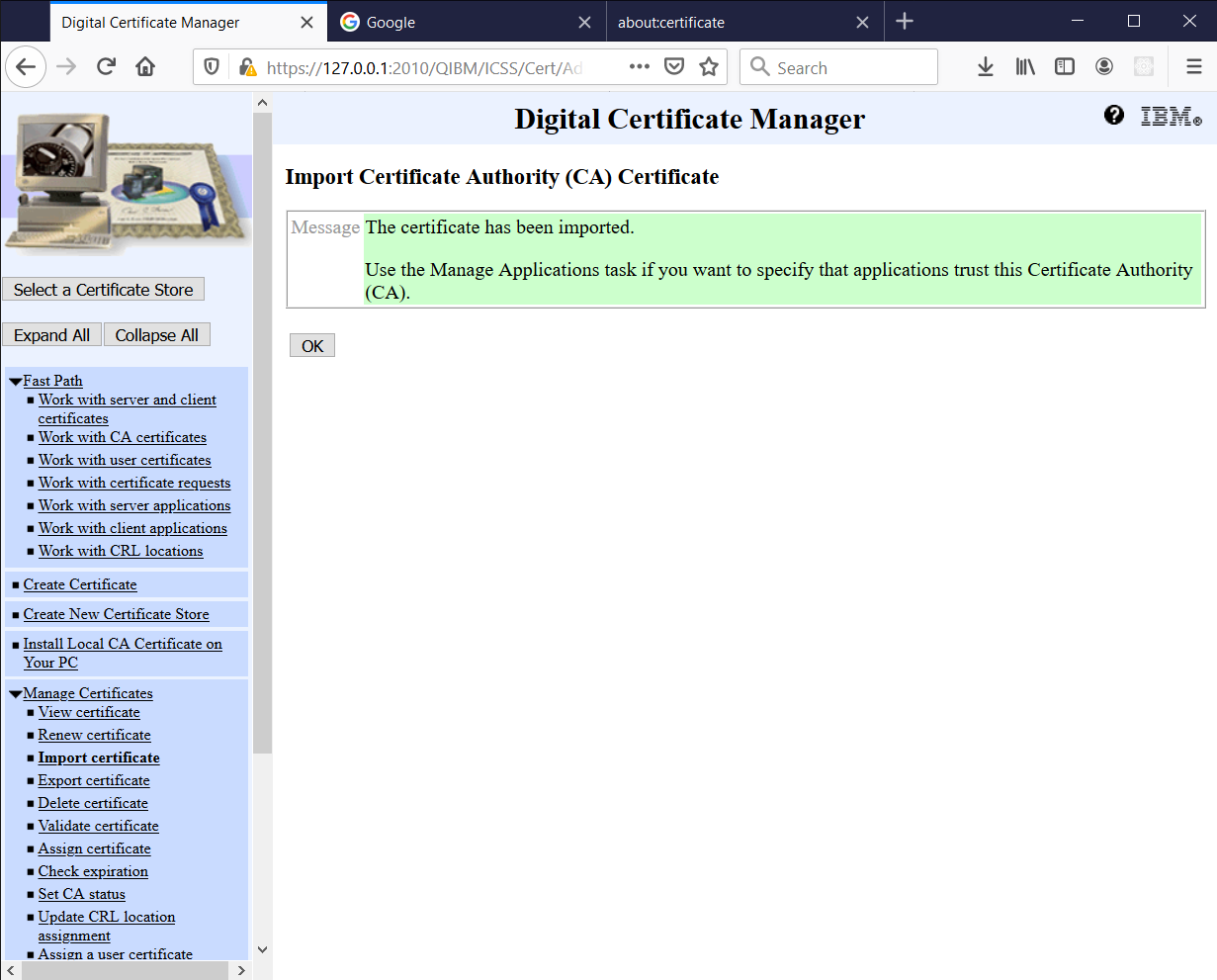

13. Press Continue:

Add external CA to trust list step13.png

Certificate imported.
